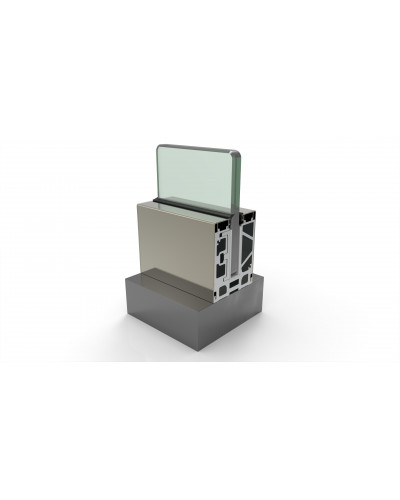

GS40L The Glass Railing Long Version

The GS40L is the ideal solution for building professionals and designer architects looking for a glass guardrail that combines maximum safety with meticulous aesthetics and continuous design. A long version of the GS40, it offers increased protection against falls and accidents, while enhancing your projects.

Why choose the GS40L glass guardrail?

• Maximum protection: Designed to accommodate thick glass, guaranteeing increased protection against falls and accidents.
• Continuous design: Long version of the GS40 for uniform aesthetics over longer lengths.
• Versatility: Suitable for both private and public use.
• Easy installation: French fastening (directly to the ground) with a side glass clamping system.
• Complete supply: Supplied with all installation components (cassette, plastic wedge and insert, rubber seals, corner elements, etc.).

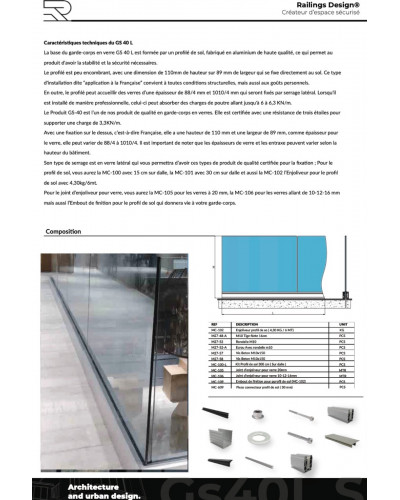

GS40L technical specifications

Materials and dimensions

• Profile: French floor fixing.
• Fixings:
• Directly to floor with chemical anchor and concrete screws (M10).
• Accessories included: Cassette, plastic wedge and insert, rubber seals, corner elements (end cover; front and end covers), floor profile bezel (MC-102), end cap (MC-109), glass bezel gasket (MC-105, MC-106).
• Available profile sizes: 15 cm (on slab) - Part no. MC-100, 30 cm (on slab) - Part no. MC-101.
• See table below for complete part numbers.
• Threaded rod
• and screws: M10 Threaded rod 16 cm (M27-48-A), Washer M10 (M27-52), Nut with washer M10 (M27-52-A), Concrete screw M10×150 (M27-57), Concrete screw M10×100 (M27-58).

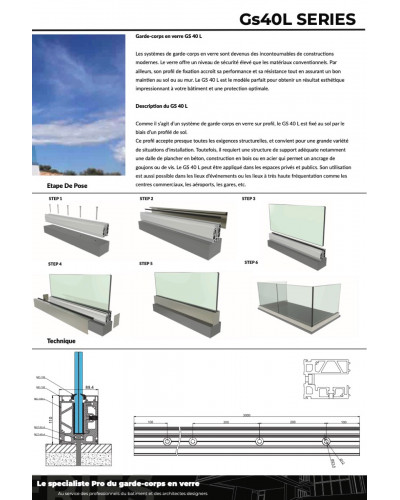

Installation (GS40L)

The GS40L is mounted in the French style, with a side glass clamping system. The installation steps are as follows:

1. Drill, vacuum, insert glue and chemical anchor.
2. Place the system and secure it with a ratchet wrench.
3. Replace the rubber gasket, rear plastic insert and laminated glass.
4. Insert the regulating system and align the glass.
5. Insert the regulating system and adjust.

Ordering chart

Applications and Target Audience

GS40L applications

The GS40L is ideal for securing and embellishing :

• Long balconies and terraces.
• Staircases and mezzanines.
• Public areas (parks, gardens, etc.).
• Commercial and residential buildings.

Who is GS40L designed for?

This guardrail is designed for :

• Building professionals looking for a reliable, easy-to-install solution suitable for long lengths.
• Architects and designers wishing to integrate an aesthetic, safe guardrail into their projects, with visual continuity over long distances.
• Companies specializing in the installation of glass guardrails.

Conclusion

Opt for the GS40L and give your projects maximum safety, continuous design and easy installation. Contact Railings Design® today to find out more!

Railings Design® - Creating secure space.
