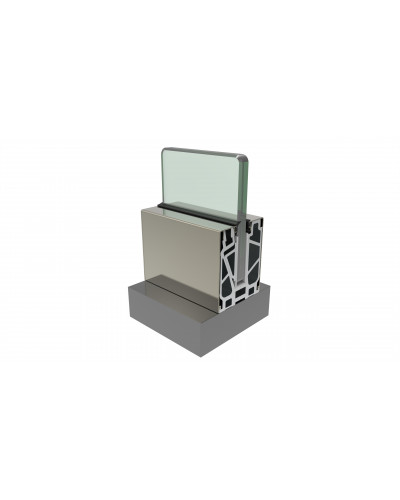

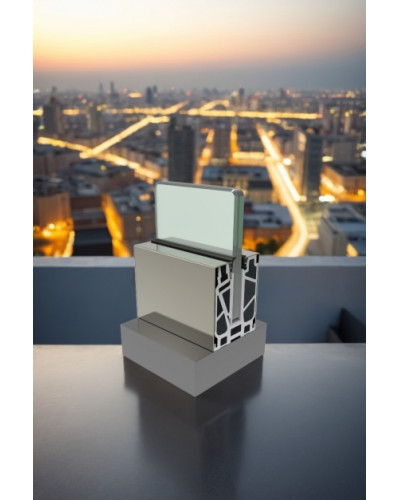

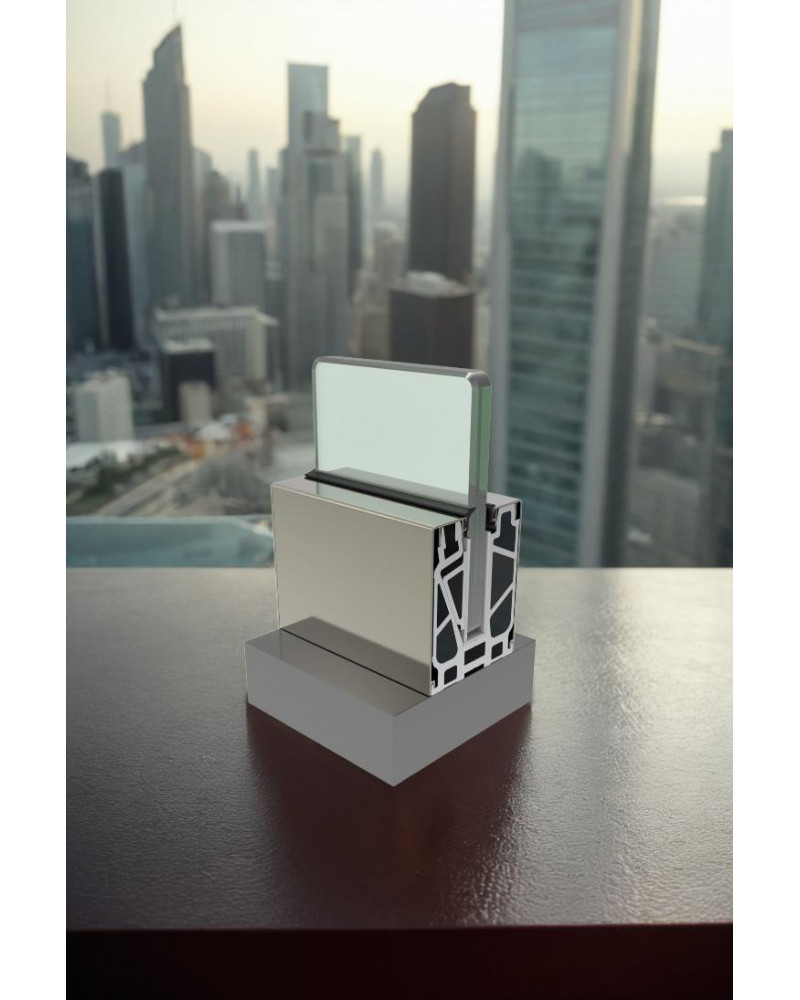

GS30 : Glass Railing on Profile - The perfect combination of safety and design

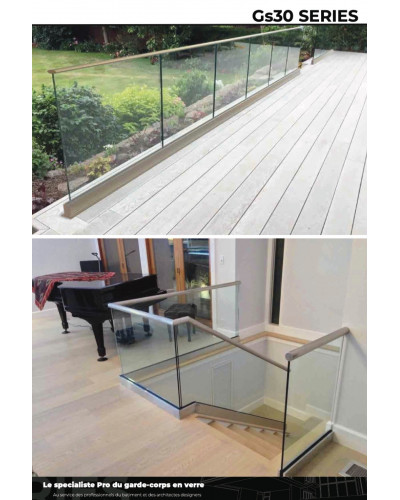

The GS30 is much more than a simple guardrail: it's a sturdy design solution that secures your spaces while enhancing their aesthetic appeal. Ideal for public and private projects, it adapts to staircases, terraces, mezzanines and much more.

Why choose GS30 glass balustrades?

• Maximum safety: Glass securely fastened by high-quality profiles.
• Complies with current safety standards.
• Elegant, modern design:
• Glass brings a touch of sophistication and transparency to your spaces.
• Versatility: Suitable for all types of projects, indoors and out.
• Easy maintenance: Regular cleaning is all that's needed to preserve the glass's brilliance.
• Durability Guaranteed: Certified profiles and accessories for optimum longevity.

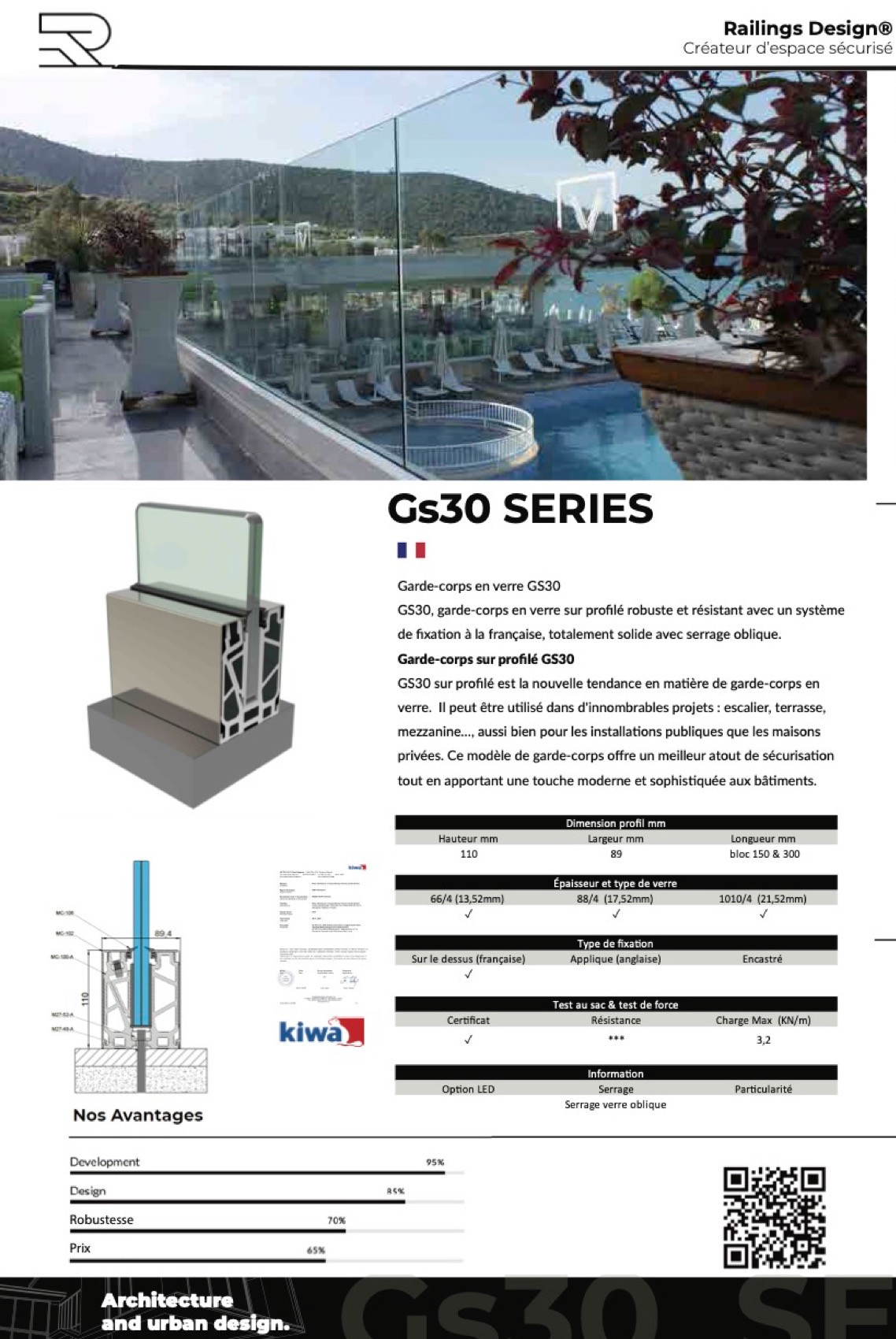

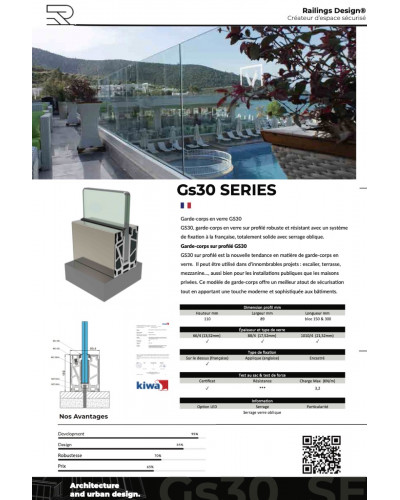

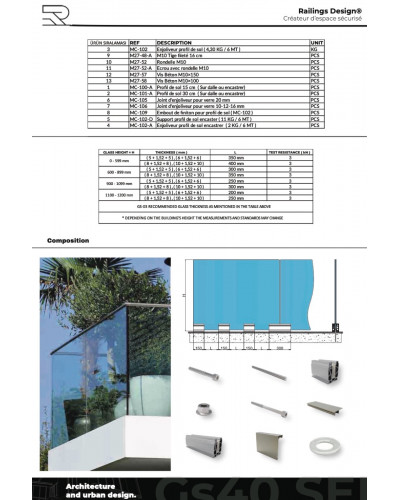

GS30 technical specifications

Materials and dimensions

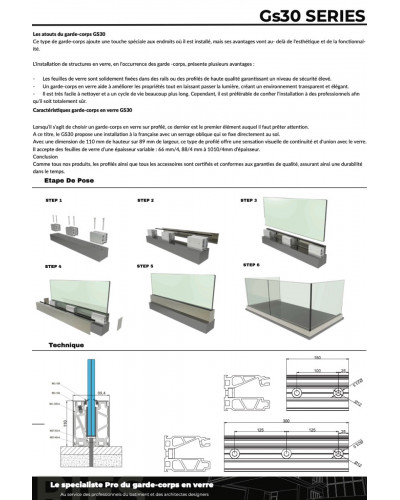

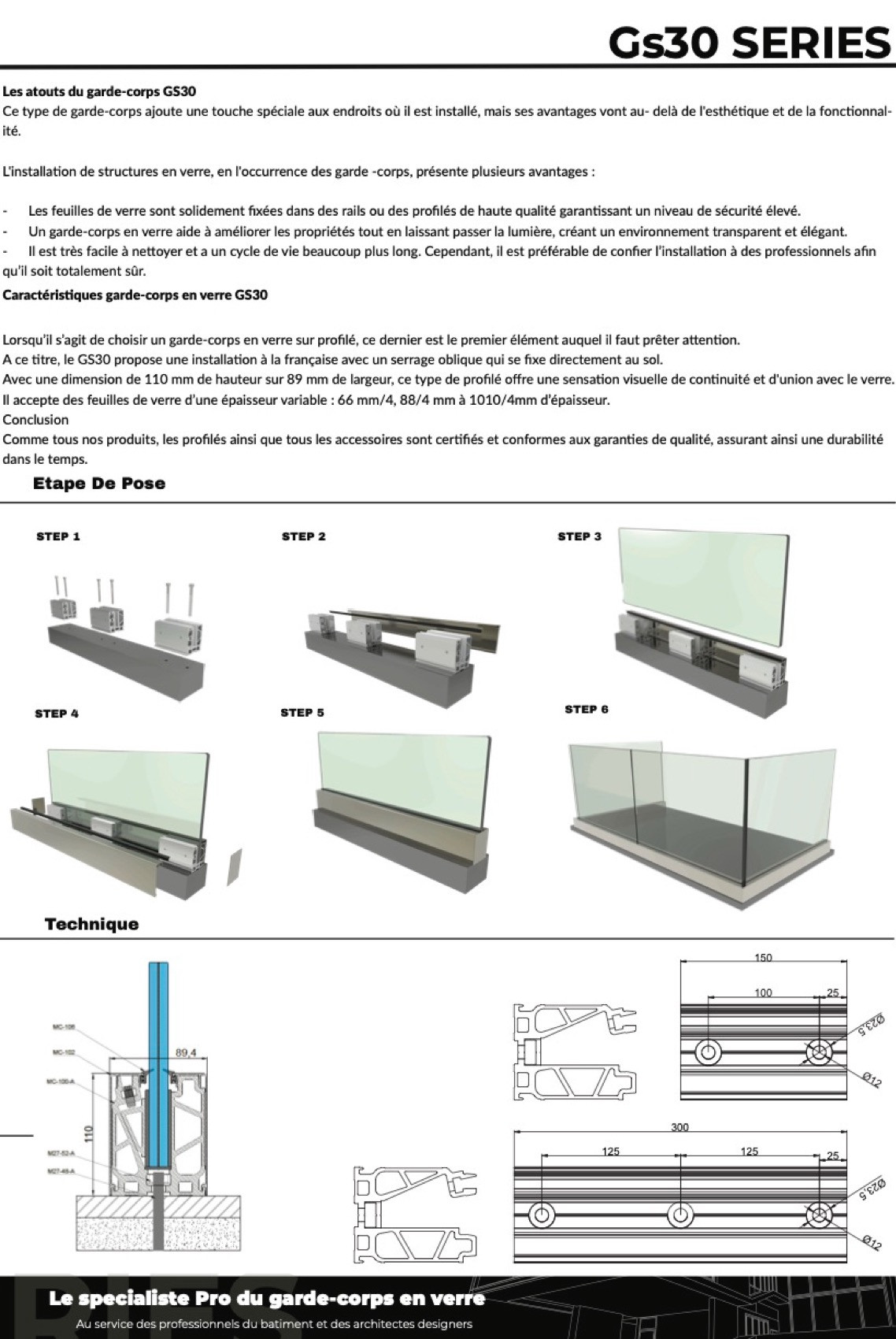

• Installation: French-style (top-mounted with angled clamp).
• Profile dimensions: 110 mm (height) x 89 mm (width).
• Available in 150 mm and 300 mm blocks.

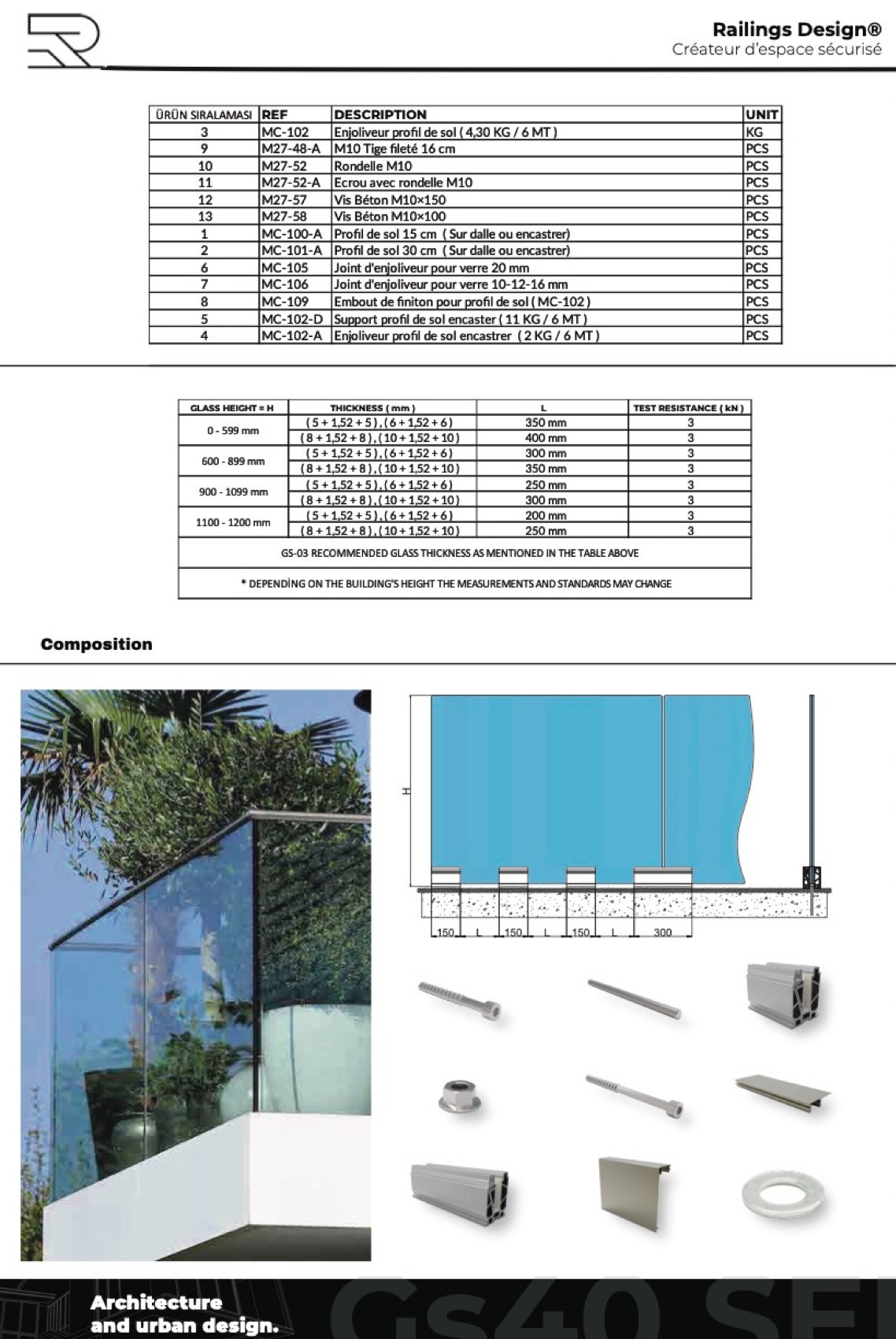

• Glass thickness: Compatible with 66/4 mm (13.52mm), 88/4 mm (17.52mm) and 1010/4 mm (21.52mm) glass.
• Fixings: Top-mounted (French-style), surface-mounted (English-style) or flush-mounted.

Performance and compliance

• Load resistance: Up to 3.2 KN/m.
• Special features: Oblique glass clamping, LED option available.
• Tests and certifications: Bag and force tested, compliant with NF P01-013 standard.

Installation and target audience

Recommended professional installation

For optimum safety and performance, entrust the installation of your GS30 guardrail to qualified professionals.

Who is the GS30 designed for?

The GS30 is the ideal choice for :

• Architects and designers looking for an aesthetic, high-performance solution.
• Building professionals wishing to offer their customers quality guardrails.
• Discerning private individuals concerned with the safety and design of their homes.

Conclusion

Choose GS30 and give your spaces the security and elegance they deserve. Contact us today for a personalized quotation!
